__EL10B - Lecture 4__
With respect to my lecture of Thursday, September 12, here are the important concepts and terms presented in a concise form for easy revision

The equation we used is:

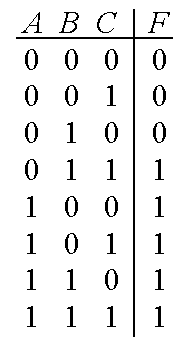

Its Truth Table is:

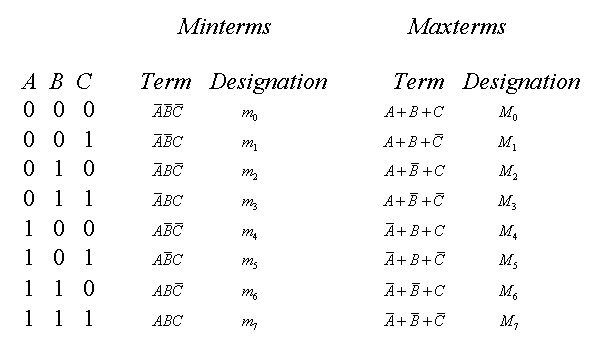

The Rules of Minterms and Maxterms are shown in this table:

A Minterm is valid where the function is equal to ONE.... and a Maxterm is valid where the function is equal to ZERO

So applying this to our function gives Minterm expression:

Minterms must be combined using the OR operator... so the expression is called Sum of Products

and Maxterm expression:

Maxterms must be combined using the AND operator... so the expression is called Product of Sums

A "CANONICAL" expression contains ALL the literals (variables) in EVERY term.

A "STANDARD" expression is an SOP or POS expression but does not have to contain all literals in every term.

A "NON-STANDARD" expression is one that contains MIXED operators within parentheses for example:
