EL10A - Circuit Analysis

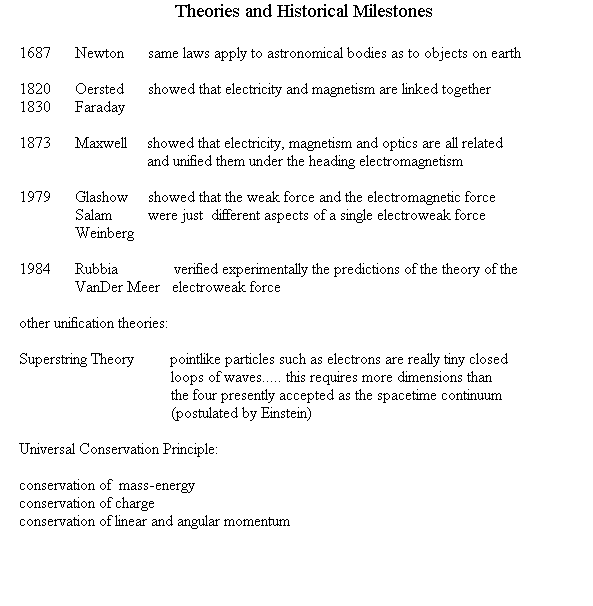

unification theories, conservation principle

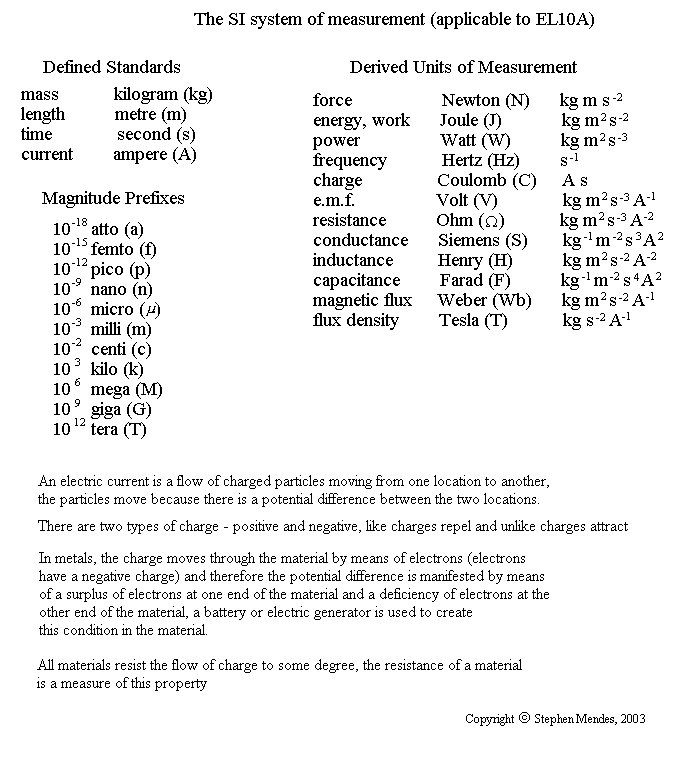

SI measurement - charges and current

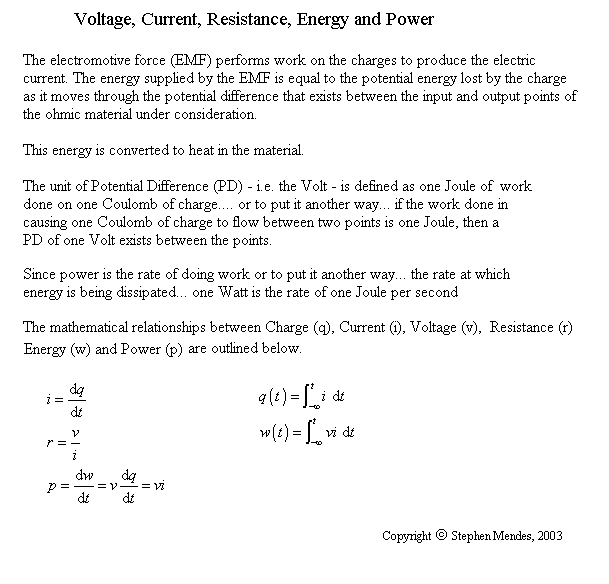

introduction to voltage, energy and power

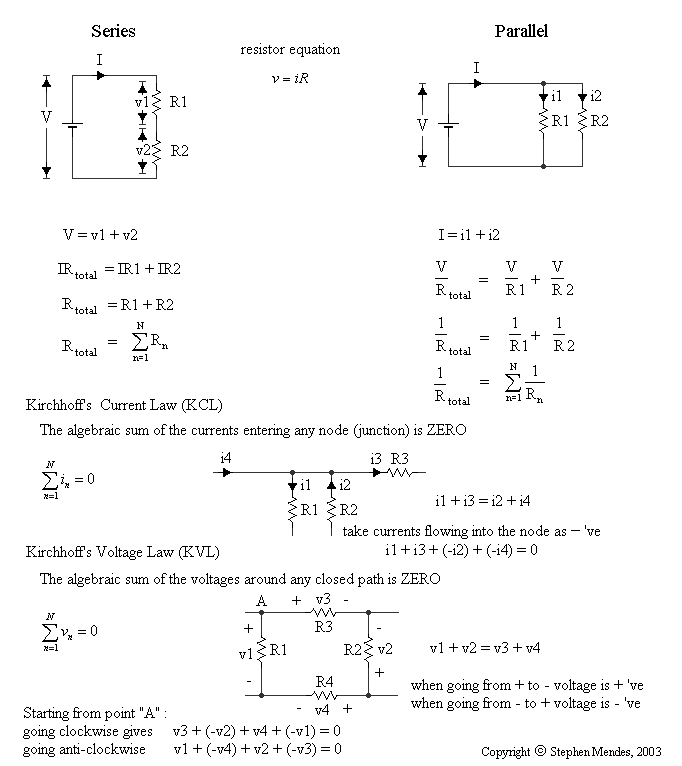

series and parallel resistors, Kirchhoff's Laws
voltage and current sources

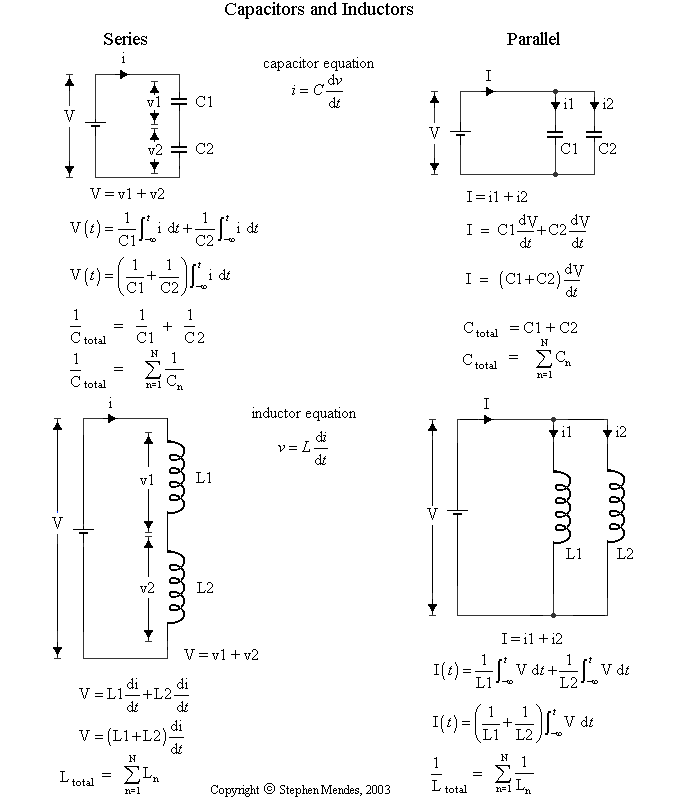

capacitors and inductors in series and parallel

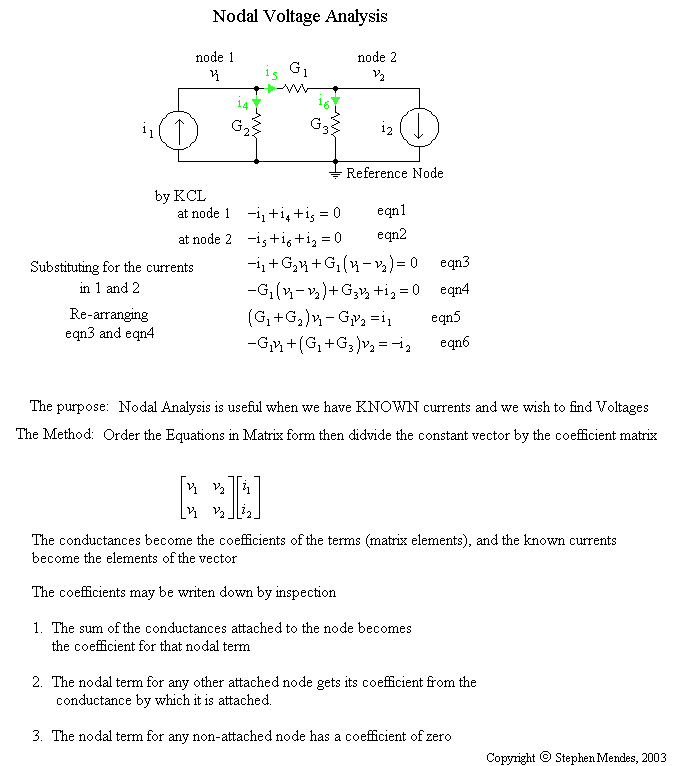

Nodal Analysis

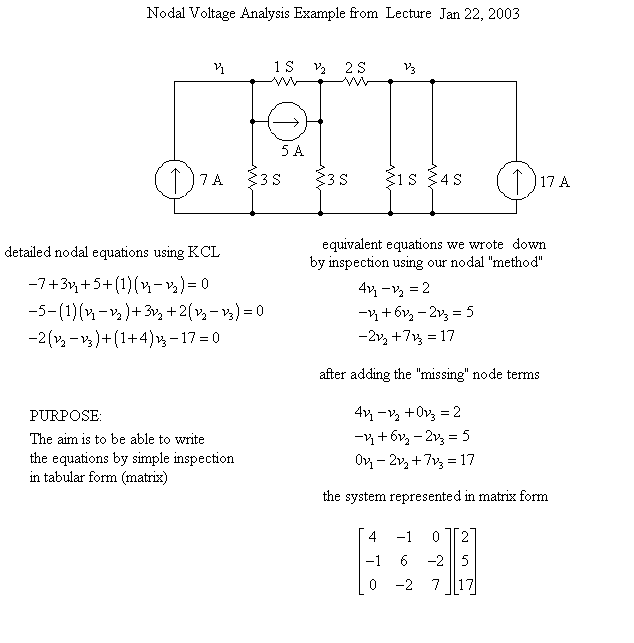

Nodal Analysis Example

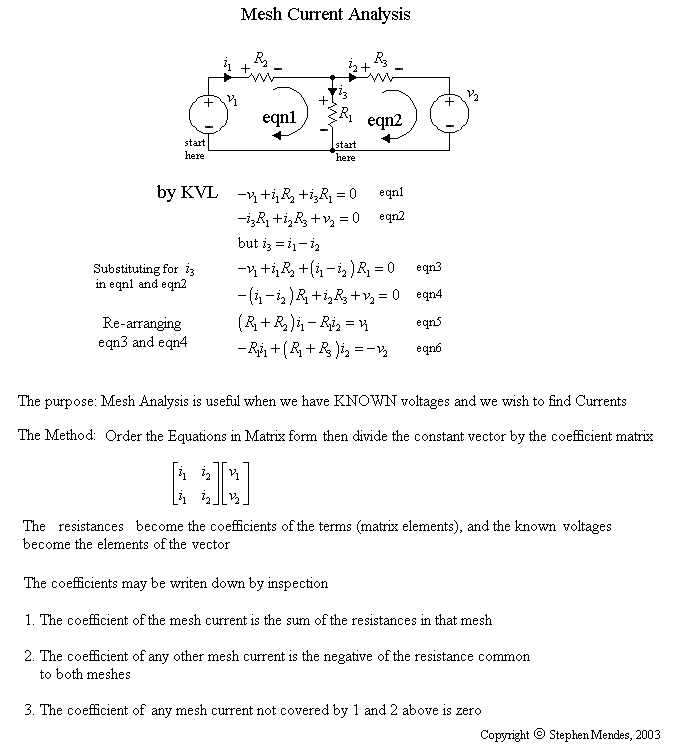

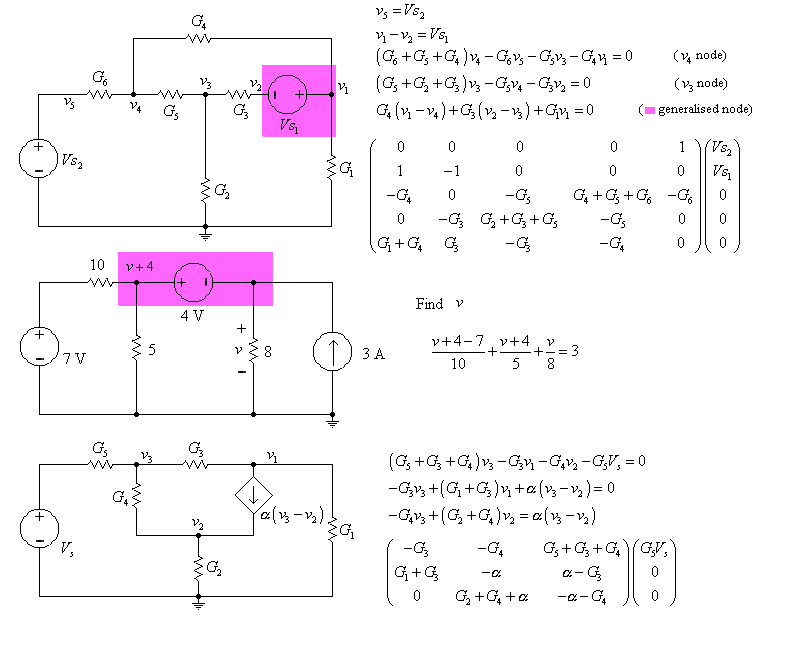

Mesh Analysis
Supernode Example

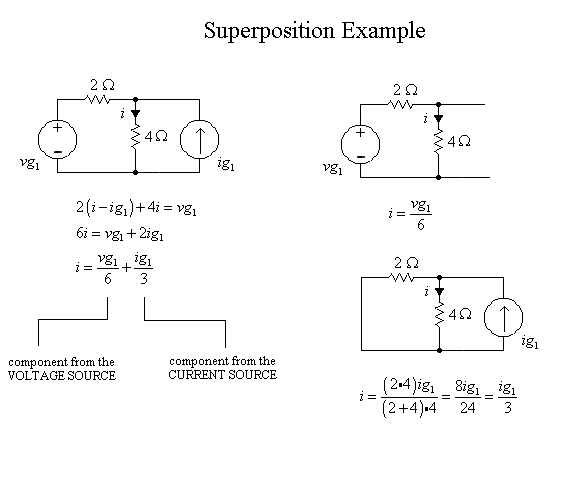

Superposition Example
Solving linear systems - Cramer's rule
Solving linear systems - Gaussian elimination
Solving linear systems - Dividing a vector by a matrix

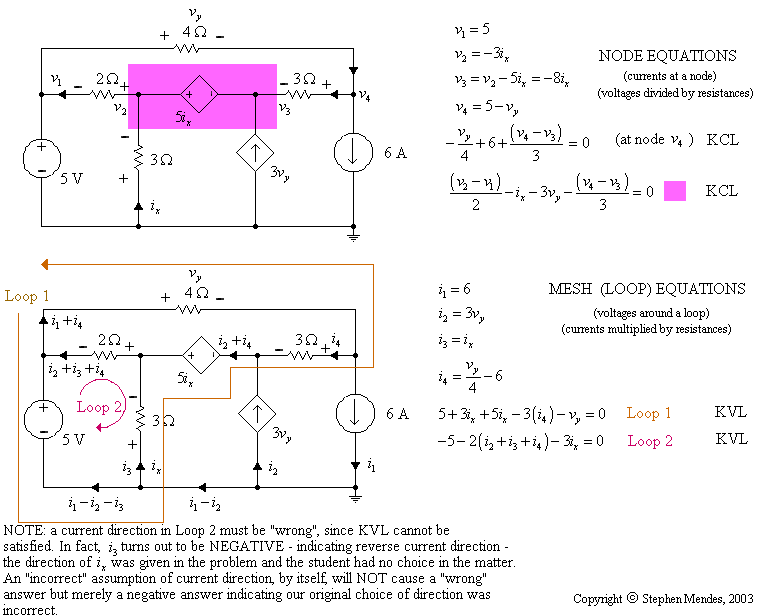

Comparison of Node and Mesh methods on hybrid circuit

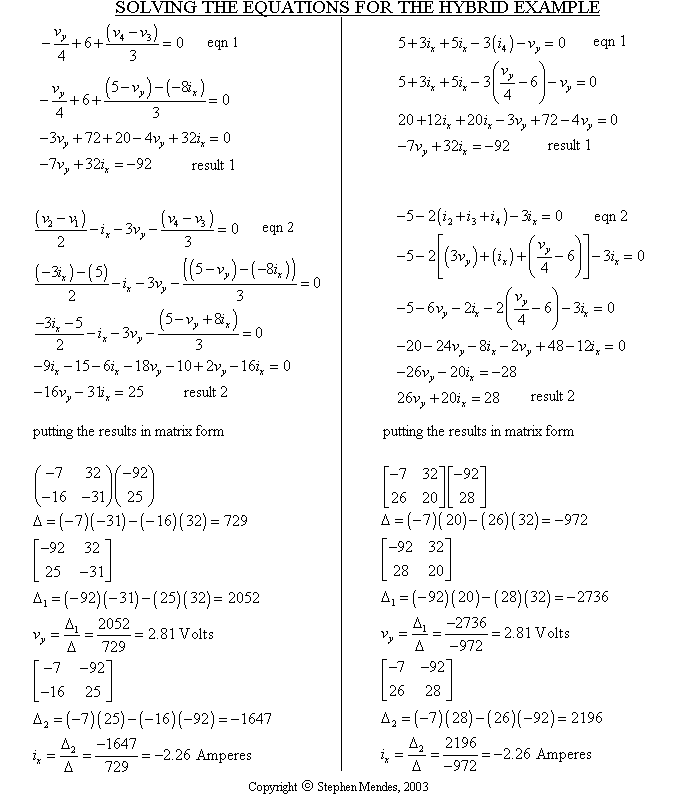

Solving the equations for the hybrid circuit
Maximum Power Transfer theorem
Thevenin and Norton theorems

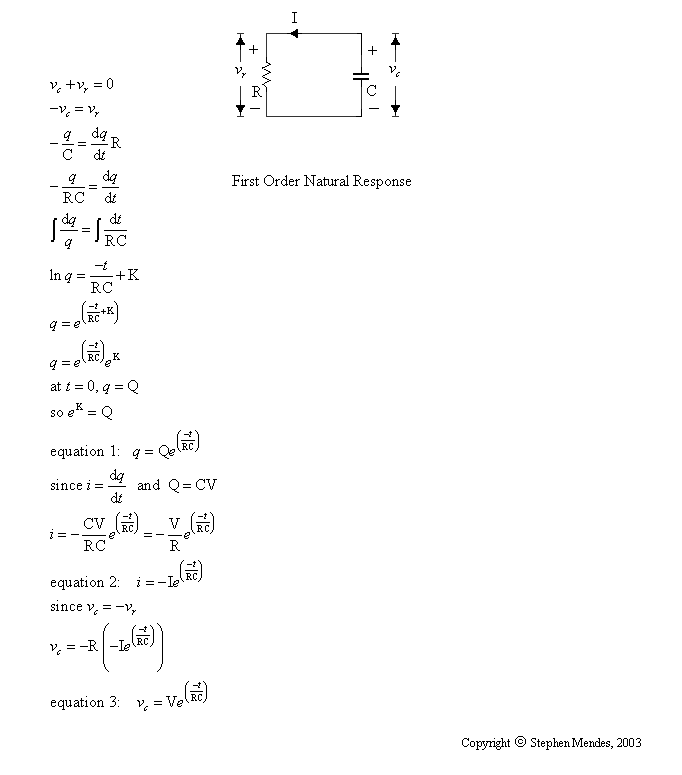

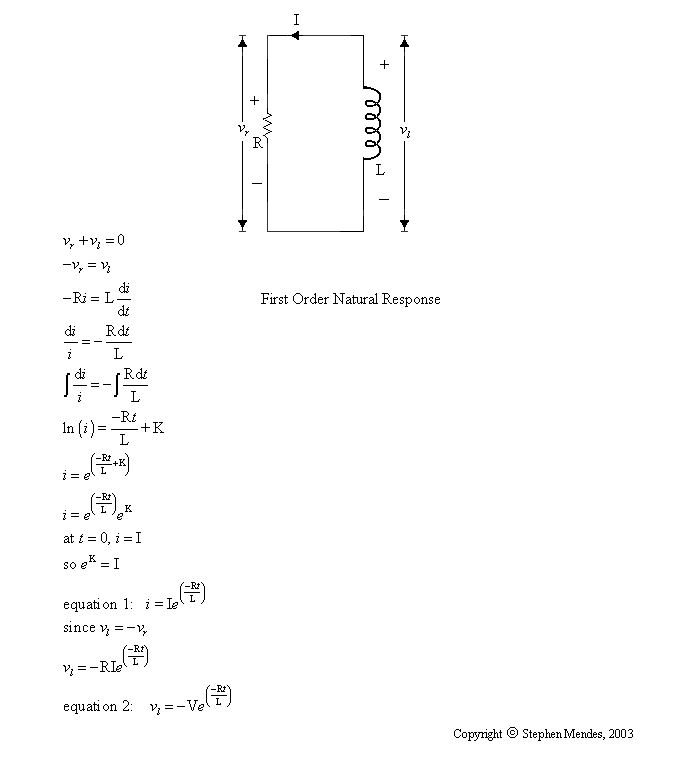

The natural response of a first order circuit - Capacitor
The natural response of a first order circuit - Inductor

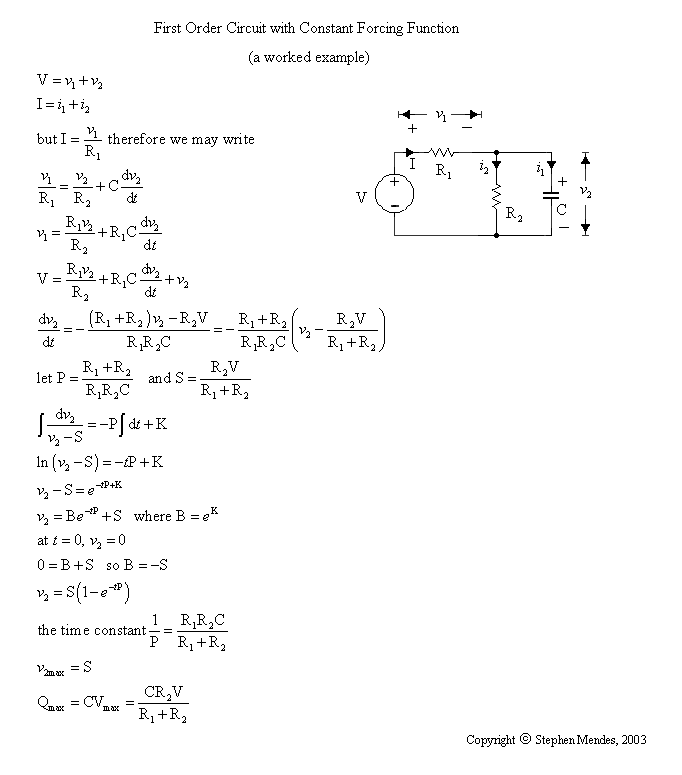

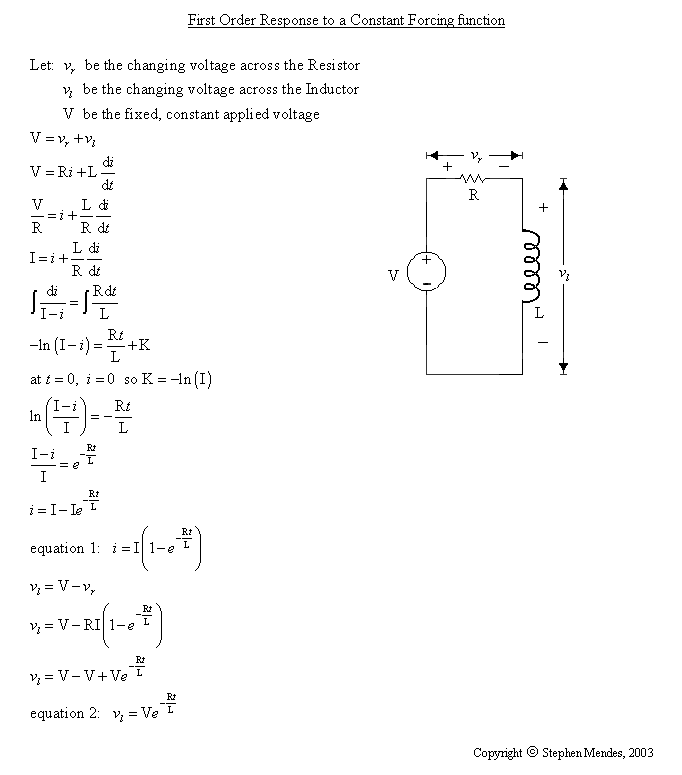

Response of a first order circuit to Constant Forcing Function - Capacitor
Response of a first order circuit to Constant Forcing Function - Inductor
Example of solving in First Order Circuits
Example illustrating Transient and Steady-State response components

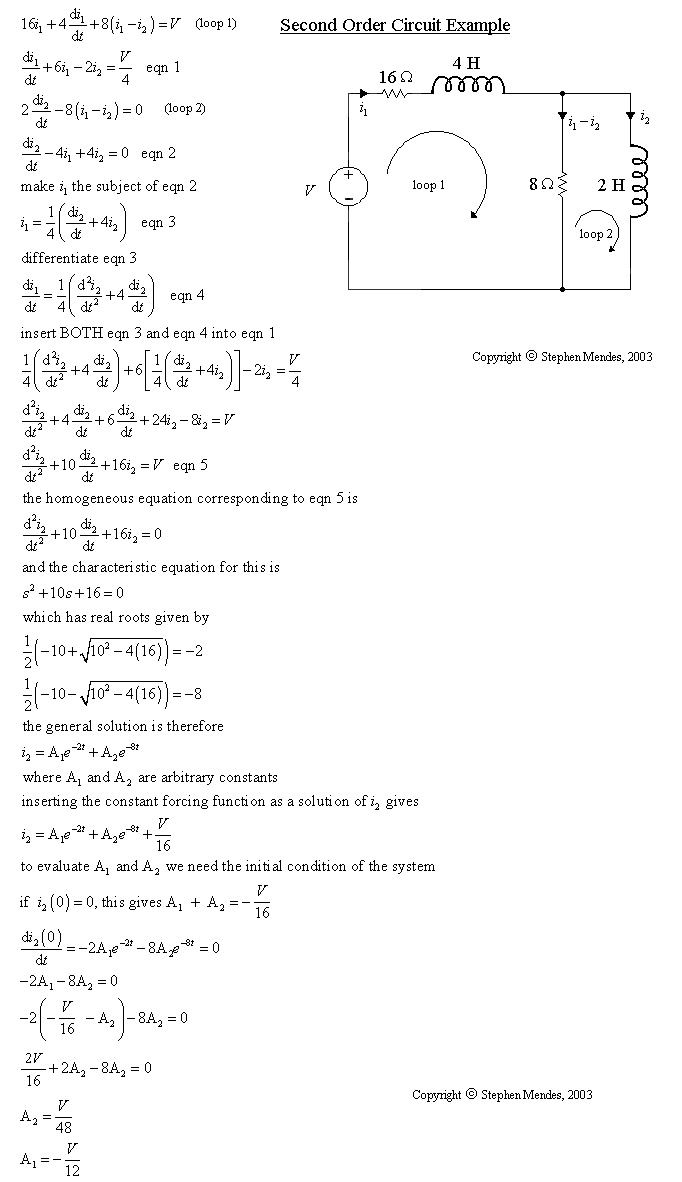

Example of solving in Second Order Circuits

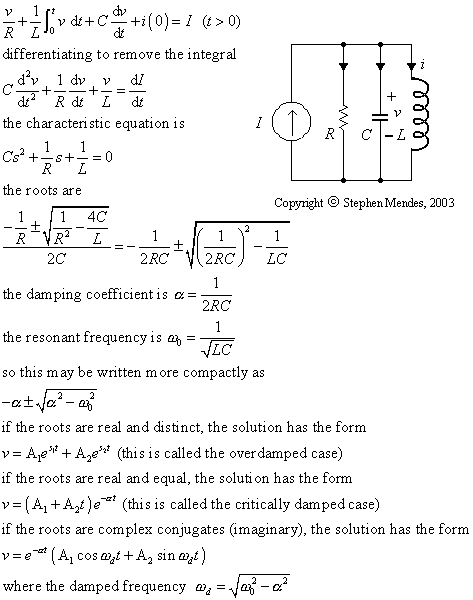

The parallel RLC circuit
The series RLC circuit
A.C. circuit calculations using trigonometry
A.C. circuit calculations using complex numbers

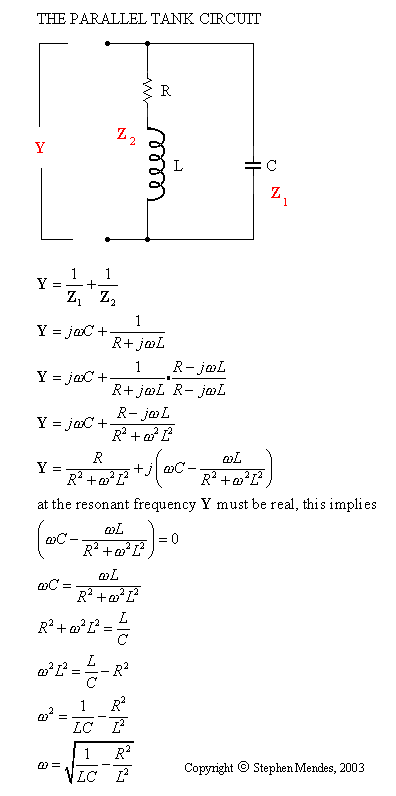

the parallel tank circuit (added on 26 JULY, 2003)
Definitions
